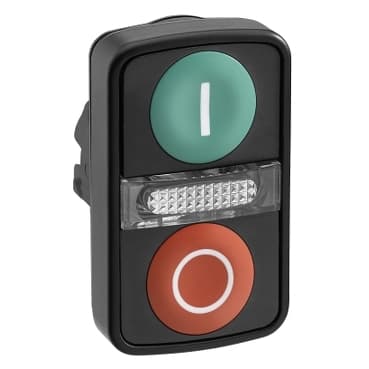

ZB5AW823743
Product ID:25969
Updated: 2026/4/7
Key Features
- 1Ensure clear visibility with bright LED illumination in any environment. 2、Achieve long-term reliability with a 2-million-cycle durability rating. 3、Simplify installation using quick connectors and solder tabs. 4、Meet safety standards including IEC and UL for compliance. 5、Apply it across industrial control systems and machinery operations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB5 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Green flush, I white)<br />Red flush, O white) |
| Operators description | Green ''I'' - red ''O'' | CAD overall width | 1.1 in (28 mm) |
| CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
| Net Weight | 0.049 lb(US) (0.022 kg) | Mechanical durability | 1000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP40 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-4<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />GL<br />CSA<br />BV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
