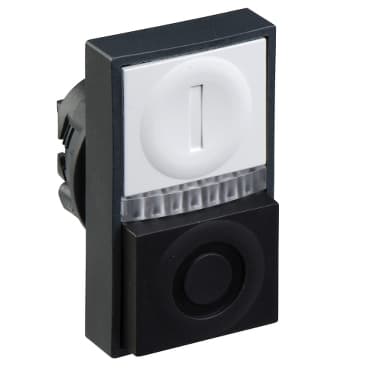

ZB5AW841723
Product ID:25973
Updated: 2026/4/7
Key Features
- 1Conform to IEC 60068-2-6 and IEC 60068-2-27 for shock resistance. 2、Achieve 300,000 operating cycles for maintained push buttons. 3、Ensure protection against dust and water ingress with IP rating. 4、Suit various mounting positions and electrical characteristics. 5、Utilize silver alloy or gold contacts for different environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB5 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | White flush, I black)<br />Black projecting, O white) |
| Operators description | White ''I'' - black ''O'' | CAD overall width | 1.1 in (28 mm) |
| CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
| Net Weight | 0.046 lb(US) (0.021 kg) | Colour of marking | Black marking when white caps |
| Mechanical durability | 1000000 cycles | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP40 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK05 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping)<br />CSA<br />BV<br />UL Listed<br />DNV<br />GL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
