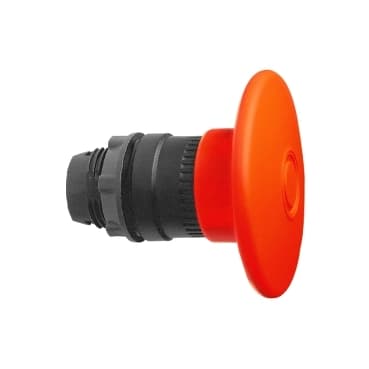

ZB5AX4
Product ID:26110
Updated: 2026/4/7
Key Features
- 1Ensure safety with a highly visible red Ø60 emergency stop button. 2、Secure operation via a reliable latching push-pull mechanism. 3、Activate and reset easily with the Ø22 trigger. 4、Withstand harsh conditions thanks to IP66 protection. 5、Protect your investment with an 18-month warranty.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head |
| Product destination | Emergency stop push-button | Device short name | ZB5 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | mechanical latching | Reset | Push-pull |
| Operator profile | Red mushroom Ø 60 mm, unmarked | Device presentation | Basic element |
| CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
| CAD overall depth | 2.2 in (56 mm) | Net Weight | 0.148 lb(US) (0.067 kg) |
| Mechanical durability | 300000 cycles | Station name | XALD 1 cut-out<br />XALK 1 cut-out |
| Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting | compatibility code | ZB5 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Product Certifications | DNV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV<br />CSA<br />GL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
