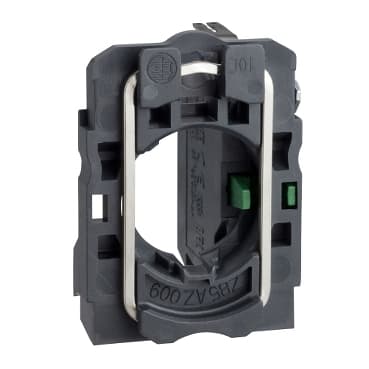

ZB5AZ1013
Product ID:26122
Updated: 2026/6/4
Key Features
- 1Ensure durability with ZB5 plastic construction for long-lasting performance.
- 2Simplify installation via quick-connect terminals for controlled operation.
- 3Meet standards with 250V, 10A rating and 3EN 60947-1 compliance.
- 4Achieve versatile compatibility for 600V systems on 22mm bases.
- 5Guarantee reliability for up to 10 million electrical cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly |
| Device short name | ZB5 | Fixing collar material | Plastic |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Contacts type and composition | 1 NO | Contact operation | Slow-break |
| Contact block type | Single | Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
| CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.046 lb(US) (0.021 kg) | Device Composition | Body<br />Fixing collar |
| Contacts usage | Standard contacts | Positive opening | Without |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.3 N NO changing electrical state |
| Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
| [Ui] rated insulation voltage | 250 V 3)EN 60947-1 | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
| Standards | UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />CSA<br />UL<br />BV<br />GL<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
