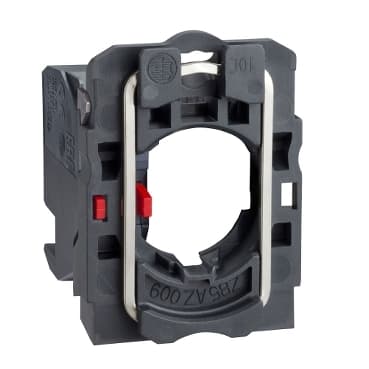

ZB5AZ1024
Product ID:26128
Updated: 2026/4/7
Key Features
- 1Ensure reliable switching with a robust 1NC contact configuration. 2、Withstand harsh environments with durability up to 10 million cycles. 3、Simplify maintenance through quick and easy disassembly. 4、Connect flexibly using screw clamp, Faston, spring, or PCB terminals. 5、Support sustainability with packaging made from recycled cardboard.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly |
| Device short name | ZB5 | Fixing collar material | Plastic |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Contacts type and composition | 1 NC | Contact operation | Slow-break |
| Contact block type | Single | Connections - terminals | Plug-in connector |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
| CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (11-12)NC |
| Net Weight | 0.040 lb(US) (0.018 kg) | Device Composition | Body<br />Fixing collar |
| Contacts usage | Standard contacts | Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2 N NC changing electrical state |
| Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1<br />6 A 120 V, AC-15, A300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP20 IEC 60529 | Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping)<br />CSA<br />BV<br />GL<br />UL<br />DNV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
