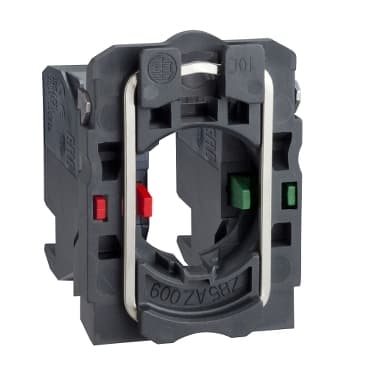

ZB5AZ1054
Product ID:26223
Updated: 2026/4/7
Key Features
- 1Ensure reliable electrical connections with 1 NO + 1 NC plug-in connector. 2、Simplify installation with a straightforward single contact block design. 3、Achieve durability using a plastic body and silver alloy contacts. 4、Fit seamlessly into systems with compact 1.18" W x 1.26" D x 1.65" H dimensions. 5、Meet IP20 enclosure standards for safe and secure operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly |
| Device short name | ZB5 | Fixing collar material | Plastic |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
| Contact block type | Single | Connections - terminals | Plug-in connector |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
| CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (11-12)NC<br />(13-14)NO |
| Net Weight | 0.057 lb(US) (0.026 kg) | Device Composition | Fixing collar<br />Body |
| Contacts usage | Standard contacts | Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Mechanical durability | 10000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 | [Ui] rated insulation voltage | 250 V 3)EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1<br />6 A 120 V, AC-15, A300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
| Standards | EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />GL<br />DNV<br />BV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
