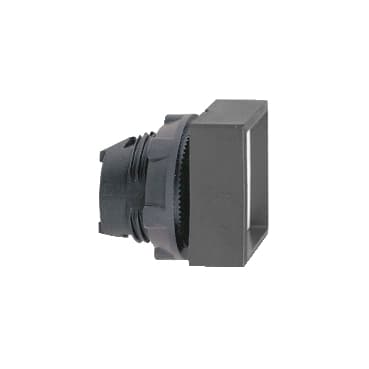

ZB5CA16
Product ID:26235
Updated: 2026/4/7
Key Features
- 1Withstand up to 5 million cycles for long-lasting reliability. 2、Resist dust and water with IP65 rating for harsh environments. 3、Measure Ø22 mm for easy integration into control panels. 4、Operate easily with a spring return mechanism to reduce fatigue. 5、Enhance panel aesthetics with a durable and modern design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Square |
| Type of operator | spring return | Operator profile | White recessed, unmarked |
| Operator additional information | High guard | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.2 in (31 mm) |
| Net Weight | 0.026 lb(US) (0.012 kg) | Mechanical durability | 5000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Product Certifications | GL<br />LROS (Lloyds register of shipping)<br />BV<br />CSA<br />DNV<br />UL Listed |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
