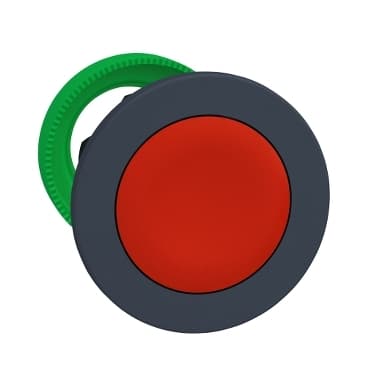

ZB5FA4
Product ID:26210
Updated: 2026/4/7
Key Features
- 1Ensure hygiene with antimicrobial ZB5FA4 pushbutton properties. 2、Simplify installation using snap-fit flush mount design. 3、Achieve reliable operation via spring return mechanism. 4、Withstand harsh conditions like pressure washers and dust. 5、Enhance user control with an ergonomic machine interface.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Product Compatibility | ZBYF...<br />ZBZF32<br />ZBZF33<br />ZB5AZ |
| Bezel material | Dark grey plastic | Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Red flush, unmarked | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.07 lb(US) (0.03 kg) | Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />JIS C8201-1<br />ISO 21702<br />ISO 22196:2011 |
| Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
