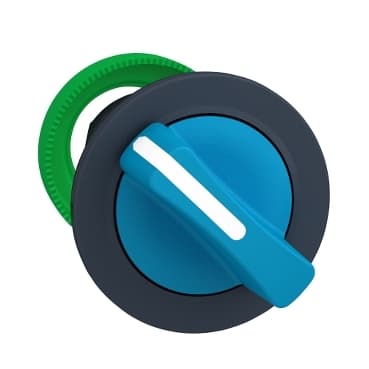

ZB5FD206
Product ID:26272
Updated: 2026/4/7
Key Features
- 1Withstand up to 1,000,000 mechanical cycles for extreme durability. 2、Achieve IP66 sealing for reliable water and dust resistance. 3、Mount flush with an ergonomic design to enhance panel aesthetics. 4、Utilize robust dark grey plastic with TH treatment for harsh conditions. 5、Apply standard or customizable markings for specific application needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for key selector switch |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Blue standard handle |
| Operator position information | 2 positions 90° | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.8 in (46 mm) |
| Net Weight | 0.068 lb(US) (0.031 kg) | Mechanical durability | 1000000 cycles |
| Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69K<br />IP69 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
