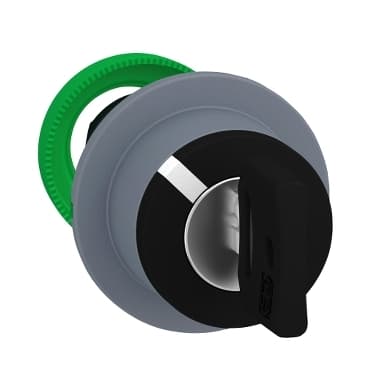

ZB5FG2C0
Product ID:26451
Updated: 2026/4/8
Key Features
- 1Withstand harsh environments with an IP66 rating for dust and water resistance. 2、Ensure long-lasting operation with a capability of 1,000,000 cycles. 3、Simplify integration using a flush-mounted design with screw clamp terminals. 4、Select from various electrical compositions (C3 to C8) for different configurations. 5、Meet international safety standards (IEC, UL, CCC) for compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XALF | Product or Component Type | Head for key selector switch |
| Device short name | ZB5 | Bezel material | Plastic colour plated grey |
| Mounting diameter | 1.2 in (30.5 mm) | Head type | Built-in-flush |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Black key switch |
| Operator position information | 2 positions 90° | Type of Keylock | Key 455 |
| Key withdrawal position | Left | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 1.5 in (37 mm) | CAD overall depth | 2.8 in (72 mm) |
| Net Weight | 0.152 lb(US) (0.069 kg) | Mechanical durability | 1000000 cycles |
| Electrical composition code | C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C3 6 single front mounting<br />SF1 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
