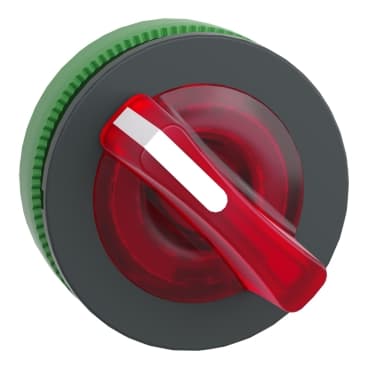

ZB5FK1243
Product ID:26621
Updated: 2026/4/8
Key Features
- 1Select reliably with a 2-position 90° illuminated flush-mount design. 2、Ensure durability via high-quality plastic construction for long life. 3、Identify quickly using the clearly visible red plastic handle. 4、Protect against harsh conditions with IP66, IP67, and IP69K ingress ratings. 5、Install easily in tight spaces thanks to a compact 1.18-inch size.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated selector switch |
| Product Compatibility | Universal LED | Device short name | ZB5 |
| Bezel material | Dark grey plastic | Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | stay put |
| Operator profile | Red standard handle | Operator position information | 2 positions 90° |
| CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
| CAD overall depth | 1.8 in (46 mm) | Net Weight | 0.07 lb(US) (0.03 kg) |
| Mechanical durability | 1000000 cycles | Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
