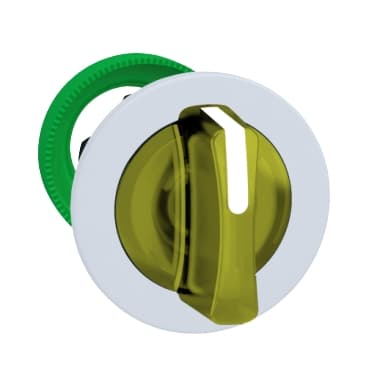

ZB5FK1583C1
Product ID:26668
Updated: 2026/4/8
Key Features
- 1Withstand harsh conditions with an IP66 protection rating. 2、Operate easily with a high-visibility yellow actuator. 3、Achieve precise control via three stable switch positions. 4、Install seamlessly into standard 30mm mounting cutouts. 5、Integrate reliably as part of the Harmony XB5 series.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated selector switch |
| Product Compatibility | Integral LED | Device short name | ZB5 |
| Bezel material | Plastic colour plated white | Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | To centre spring return |
| Operator profile | Yellow standard handle | Operator position information | 3 positions +/- 45° |
| CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
| CAD overall depth | 1.8 in (46 mm) | Net Weight | 0.07 lb(US) (0.03 kg) |
| Mechanical durability | 500000 cycles | Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />BV<br />GL<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
