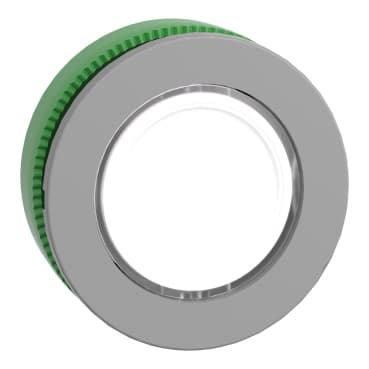

ZB5FV013C0
Product ID:26716
Updated: 2026/4/8
Key Features
- 1Utilize antimicrobial plastic for enhanced hygiene in sensitive environments. 2、Deliver clear visual feedback on machine status with universal LED illumination. 3、Install easily into standard 30.5mm diameter panel cutouts. 4、Ensure clear visibility with a bright white pilot light indicator. 5、Integrate seamlessly with the reliable Harmony XB5 series components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
| Product Compatibility | Universal LED | Device short name | ZB5 |
| Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | White |
| Operator additional information | With plain lens | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) | Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />JIS C8201-1 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
