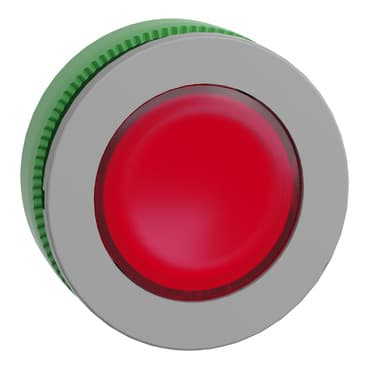

ZB5FV043C0
Product ID:26722
Updated: 2026/4/8
Key Features
- 1Withstand harsh conditions with an IK06 impact resistance rating. 2、Simplify setup using the quick clip-together component system. 3、Configure the display for clear machine function indication. 4、Ensure clear visibility with the bright integral LED. 5、Integrate seamlessly across various panels and industrial settings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
| Product Compatibility | Universal LED | Device short name | ZB5 |
| Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | Red |
| Operator additional information | With plain lens | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) | Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
