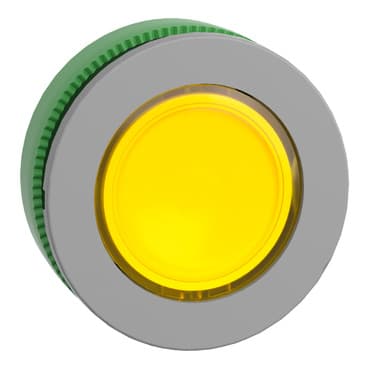

ZB5FV083C0
Product ID:26731
Updated: 2026/4/8
Key Features
- 1Ensure universal LED compatibility for seamless integration. 2、Provide IP66 protection against dust and water ingress. 3、Operate reliably in extreme temperatures from -40°C to 70°C. 4、Feature a compact 30mm diameter for easy panel mounting. 5、Deliver a sleek grey bezel with yellow flush mount design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
| Product Compatibility | Universal LED | Device short name | ZB5 |
| Bezel material | Plastic colour plated grey | Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | Yellow |
| Operator additional information | With plain lens | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 1.5 in (37 mm) | CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) | Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP67<br />IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-5<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
