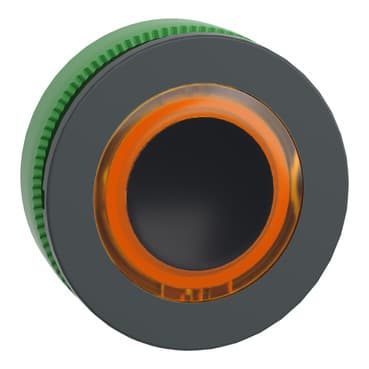

ZB5FW953
Product ID:26774
Updated: 2026/7/24
Key Features
- 1Ensure easy operation with an ergonomic interface design.
- 2Achieve 10,000,000 cycles of mechanical durability for longevity.
- 3Protect against harsh conditions with an IP66 sealing rating.
- 4Enhance visibility using a clear orange flush-mounted legend.
- 5Utilize durable dark grey plastic for robust construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB5 | Product Compatibility | Universal LED |
| Bezel material | Dark grey plastic | Mounting diameter | 1.2 in (30.5 mm) |
| Sale per indivisible quantity | 1 | Head type | Built-in-flush |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Orange flush, unmarked | Operator additional information | With illuminated ring |
| CAD overall width | 1.5 in (37 mm) | CAD overall height | 1.5 in (37 mm) |
| CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
| Cap/operator or lens colour | Orange | Marking | Unmarked |
| Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-1<br />GB 14048.5<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
