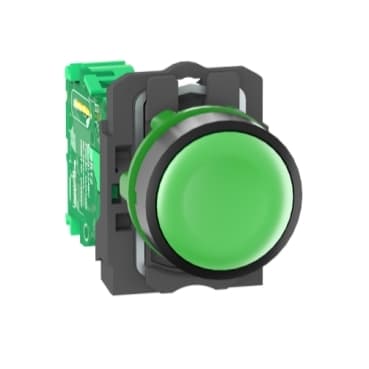

ZB5RTA3
Product ID:26783
Updated: 2026/4/8
Key Features
- 1Enable wireless and batteryless operation for continuous use. 2、Integrate seamlessly with Harmony XB5 22 mm Pushbutton. 3、Ensure durability with an IP65 enclosure for harsh environments. 4、Provide reliable communication using 2405 MHz transmission frequency. 5、Feature spring return action for easy reset and operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Wireless and batteryless transmitter |
| Device short name | XB5R | Bezel material | Dark grey plastic |
| Fixing collar material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Transmission frequency | 2405 MHz | emission class | 5M00G7W |
| Antenna type | Omnidirectional | Shape of signaling unit head | Round |
| Type of operator | spring return push-button with transmitter | Operator profile | Green flush |
| Max power consumption in W | 1 mW | Number of Channels | 16 |
| Modulation technique | O-QPSK | Bandwidth | 5 MHz |
| Antenna gain | 0 dBi | Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.6 in (41.5 mm) | CAD overall width | 1.2 in (30 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.099 lb(US) (0.045 kg) |
| Operating travel | 0.2 in (4.3 mm) total travel) | Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | Free fall resistance 1000 mm EN/IEC 60068-2-32 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />UL 508 |
| Radio agreement | ANATEL<br />ARIB T66<br />FCC<br />ICASA<br />RSS | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna | Acquisition time | 2 ms |
| Response time | < 2 ms | Emission Power | 3 mW |
| Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | PW1 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Relative humidity | 95 % -40…158 °F (-40…70 °C) without condensation |
| IP degree of protection | IP66 IEC 60529 front face)<br />IP67 IEC 60529 front face)<br />IP69 IEC 60529 front face)<br />IP69K IEC 60529 front face) | IK degree of protection | IK03 conforming to IEC 50102 |
| Mechanical durability | 1000000 cycles | Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Product Certifications | BT 2006/95/EC<br />UL<br />GOST<br />C-tick<br />CSA | Directives | 1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility |
Specifications may be subject to change without notice
