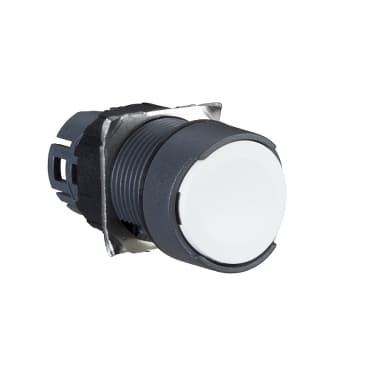

ZB6AA1
Product ID:26800
Updated: 2026/7/23
Key Features
- 1Integrate seamlessly with a compact 16mm diameter design.
- 2Ensure reliable operation using a consistent spring return mechanism.
- 3Select for non-illuminated applications to reduce complexity.
- 4Resist environmental factors with a durable plastic bezel.
- 5Mount easily with full Harmony XB6 series compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | White flush, unmarked | CAD overall width | 0.7 in (18 mm) |
| CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.3 in (33 mm) |
| Net Weight | 0.035 lb(US) (0.016 kg) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 60536<br />Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-5-5<br />IEC 60947-1<br />JIS C8201-5-1<br />JIS C 852<br />JIS C8201-1 |
| Product Certifications | CSA<br />UL<br />CCC<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
