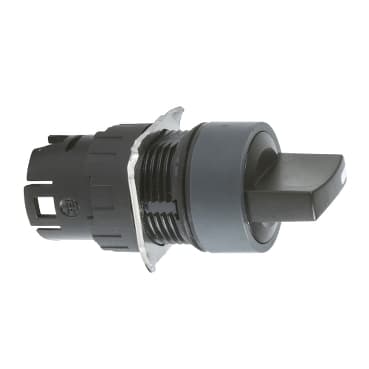

ZB6AD23
Product ID:26980
Updated: 2026/4/8
Key Features
- 1Ensure long-lasting performance with high-quality monolithic plastic. 2、Achieve reliable operation in harsh environments via IP65 rating. 3、Simplify mounting with a minimum diameter of 16 mm (0.63 inches). 4、Suit various applications using a black handle and 3 positions at 60°. 5、Meet international standards including IEC 61140 and IEC 60529.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for selector switch |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | stay put |
| Operator profile | Black standard handle | Operator position information | 3 positions 60° |
| CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 |
| Standards | CSA C22.2 No 14<br />JIS C 852<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CCC<br />UL<br />CSA<br />GOST |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
