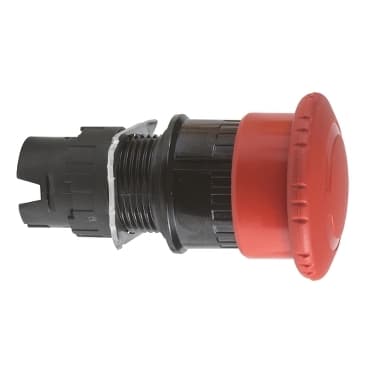

ZB6AS834
Product ID:26940
Updated: 2026/4/8
Key Features
- 1Withstand harsh conditions with an IP65 rating. 2、Ensure reliable safety with mechanical latching operation. 3、Identify instantly via its red mushroom head design. 4、Operate reliably across a -13°C to 158°C range. 5、Achieve long-term value with 100,000 mechanical cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for emergency stop push-button |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
| Reset | Turn to release | Operator profile | Red mushroom Ø 30 mm, unmarked |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
| CAD overall depth | 2.0 in (50 mm) | Net Weight | 0.077 lb(US) (0.035 kg) |
| Mechanical durability | 100000 cycles | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />EN/ISO 13850<br />EN/IEC 60947-5-5<br />EN/IEC 60204-1<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 |
| Product Certifications | CCC<br />CSA<br />GOST<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
