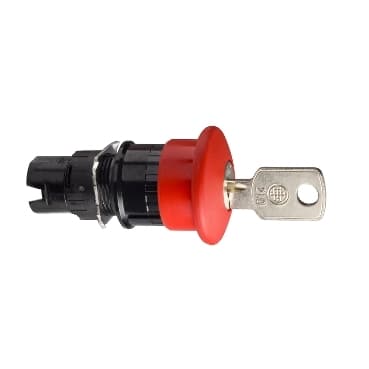

ZB6AS934
Product ID:26941
Updated: 2026/7/23
Key Features
- 1Enhance visibility with a distinctive red mushroom head design.
- 2Ensure secure operation via a mechanical latching mechanism.
- 3Withstand harsh conditions with an IP65 dust and water resistance rating.
- 4Meet safety standards including RoHS, REACH, and UL Listed compliance.
- 5Choose sustainably as part of the Green Premium series.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for emergency stop push-button |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
| Reset | Key release | Operator profile | Red mushroom Ø 30 mm, unmarked |
| Type of Keylock | Key 200 | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 2.8 in (70 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) | Mechanical durability | 100000 cycles |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 |
| Standards | JIS C8201-5-1<br />UL 508<br />EN/ISO 13850<br />JIS C 852<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60204-1<br />JIS C8201-1 | Product Certifications | UL<br />CSA<br />GOST<br />CCC |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
