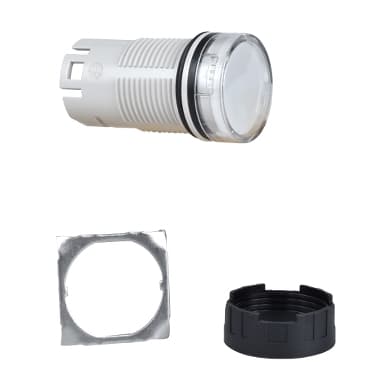

ZB6AV1
Product ID:26943
Updated: 2026/4/8
Key Features
- 1Achieve IP65 protection against dust and water ingress. 2、Utilize an energy-efficient LED lamp for long operational life. 3、Install quickly into standard 16mm panel holes. 4、Rely on a durable plastic bezel for harsh industrial use. 5、Benefit from a 30-day return policy for risk-free purchase.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for pilot light |
| Product Compatibility | Integral LED | Device short name | ZB6 |
| Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| cap/operator or lens colour | White | CAD overall width | 0.7 in (18 mm) |
| CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.3 in (33 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 852<br />JIS C 4520<br />EN/IEC 60947-1<br />UL 508 |
| Product Certifications | CCC<br />CSA<br />UL<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
