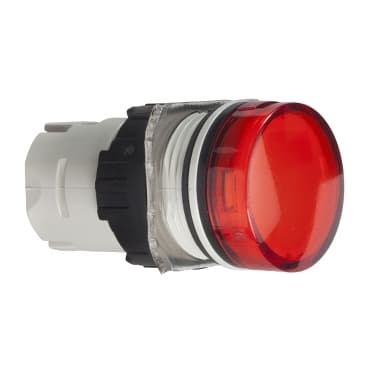

ZB6AV4
Product ID:26945
Updated: 2026/7/23
Key Features
- 1Feature an integral LED for clear, efficient, and long-lasting illumination.
- 2Provide robust NEMA 4/4X/13/IP65 protection against dust and water.
- 3Operate reliably across a wide temperature range from -25°C to 70°C.
- 4Include a highly visible red cap/operator lens for instant status recognition.
- 5Utilize a durable plastic bezel for enhanced longevity in industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for pilot light |
| Product Compatibility | Integral LED | Device short name | ZB6 |
| Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| cap/operator or lens colour | Red | CAD overall width | 0.7 in (18 mm) |
| CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.3 in (33 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | UL 508<br />EN/IEC 60947-5-1<br />JIS C 4520<br />EN/IEC 60947-5-5<br />JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-1 |
| Product Certifications | GOST<br />CSA<br />CCC<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
