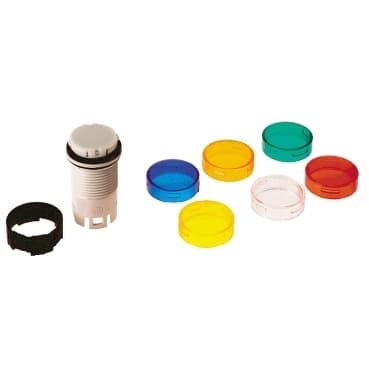

ZB6AV9
Product ID:26948
Updated: 2026/4/8
Key Features
- 1Choose from six color caps for versatile signaling. 2、Ensure durability with plastic construction and lightweight design. 3、Protect against demanding conditions with IP65, NEMA 4X, and NEMA 13 ratings. 4、Install easily in compact spaces like control panels. 5、Apply to small machines, labs, and surveillance rooms.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for pilot light |
| Product Compatibility | Integral LED | Device short name | ZB6 |
| Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| cap/operator or lens colour | 6 colours choice | Operator additional information | Set of 6 color caps |
| CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.033 lb(US) (0.015 kg) |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 |
| Standards | IEC 60947-5-5<br />JIS C 852<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 4520<br />UL 508 | Product Certifications | GOST<br />CCC<br />UL<br />CSA |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
