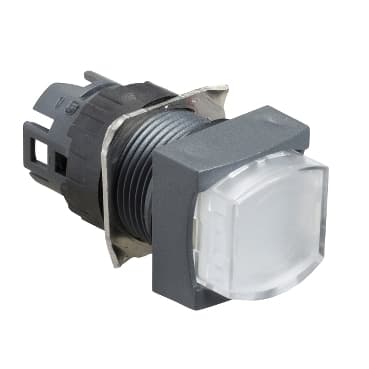

ZB6CE9
Product ID:27023
Updated: 2026/4/8
Key Features
- 1Ensure compliance with UL 508 and CSA C22.2 safety standards. 2、Reduce energy use with low 15 mA LED power consumption. 3、Protect against harsh conditions via IP65 dust and water resistance. 4、Operate reliably across a wide -25°C to 70°C temperature range. 5、Simplify integration with versatile 6-30V ac/dc voltage compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for illuminated push-button |
| Product Compatibility | Integral LED | Device short name | ZB6 |
| Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Square |
| Type of operator | spring return | Operator profile | 6 colors choice projecting, unmarked |
| Operator additional information | Set of 6 color caps | CAD overall width | 0.7 in (18 mm) |
| CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.4 in (36 mm) |
| Net Weight | 0.035 lb(US) (0.016 kg) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94 | Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 852<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-1 |
| Product Certifications | UL<br />CCC<br />GOST<br />CSA | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
