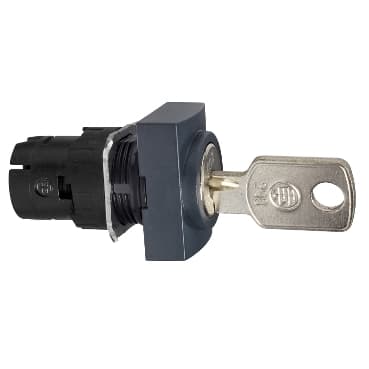

ZB6DGQ
Product ID:27116
Updated: 2026/4/8
Key Features
- 1Achieve IP65 protection against dust and water ingress for harsh environments. 2、Ensure secure operation with a reliable latching actuation mechanism. 3、Withstand 500,000 operating cycles for exceptional mechanical durability and longevity. 4、Simplify panel integration with quick mounting in standard 16mm diameter holes. 5、Apply this versatile key switch head across control panels and finishing machines.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Head for key selector switch |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | Right to centre spring return |
| Operator profile | Black key switch | Operator position information | 3 positions |
| Type of Keylock | Key 200 | Key withdrawal position | Left-hand |
| CAD overall width | 0.9 in (24 mm) | CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (55 mm) | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C 852<br />IEC 60947-1<br />IEC 60947-5-5<br />UL 508<br />JIS C8201-1 |
| Product Certifications | GOST<br />CCC<br />UL<br />CSA | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
