ZB6DP2
Product ID:27120
Updated: 2026/7/23
Key Features
- 1Construct a durable plastic rectangular head for long-lasting performance.
- 2Ensure reliable operation with IP65 protection against harsh environments.
- 3Withstand 1,000,000 cycles of mechanical stress for extended lifespan.
- 4Achieve versatile compatibility with Ø 6.35 mm shafts.
- 5Meet key standards including IEC 60529, UL 508, and CSA C22.2 No 94.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|

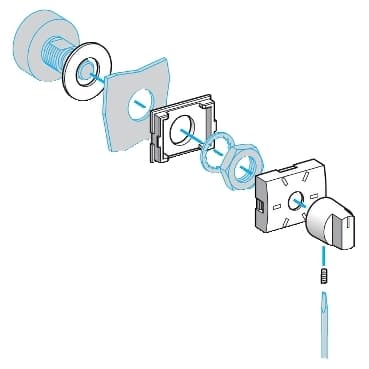

| Range of Product | Harmony XB6 | Product or Component Type | Head + mounting base for potentiometer |
| Device short name | ZB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Product Compatibility | For use with Ø 6.35 mm shaft |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Operator profile | handle, with white) | Net Weight | 0.071 lb(US) (0.032 kg) |
| Mechanical durability | 1000000 cycles | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | JIS C 852<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-1 |
| Product Certifications | CCC<br />UL<br />CSA<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
