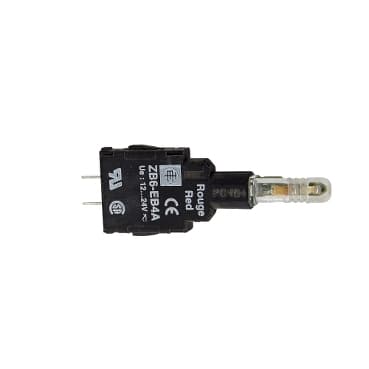

ZB6EB6A
Product ID:26911
Updated: 2026/4/8
Key Features
- 1Integrate a high-quality 16 mm LED lamp for reliable illumination. 2、Ensure compatibility with XB6 Series pushbuttons for seamless control panel integration. 3、Meet international standards including UL 508, CSA, and CE certification. 4、Withstand harsh operating temperatures from -40°C to 70°C. 5、Simplify installation with a convenient slip-on terminal design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete body for pilot lights |
| Device short name | ZB6 | Sale per indivisible quantity | 5 |
| Connections - terminals | Pins for printed circuit board 1 x 0.5 mm | Light source | LED |
| Bulb base | Integral LED | Light block supply | Direct |
| Light source colour | Blue | [Us] Rated Supply Voltage | 12...24 V AC/DC |
| CAD overall height | 0.6 in (16 mm) | CAD overall depth | 2.3 in (58 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.007 lb(US) (0.003 kg) |
| Operating position | Any position | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 | Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC | current consumption | 15 mA |
| Surge withstand | 1 kV in contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | Standards | EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />JIS C 852<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C 4520 |
| Product Certifications | GOST<br />CSA<br />UL<br />CCC | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Electromagnetic emission | Class B IEC 55011 |
