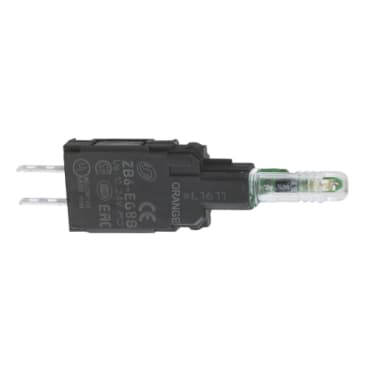

ZB6EG8B
Product ID:26920
Updated: 2026/4/8
Key Features
- 1Operate across 48-120V AC for versatile industrial use. 2、Construct with robust materials for enduring performance. 3、Assemble quickly using the simple clip-together system. 4、Achieve IP65 protection against dust and water ingress. 5、Meet UL, CSA, and CCC standards for global safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete body for pilot lights |
| Device short name | ZB6 | Sale per indivisible quantity | 5 |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm | Light source | LED |
| Bulb base | Integral LED | Light block supply | Direct |
| Light source colour | Orange | [Us] Rated Supply Voltage | 48...120 V AC |
| CAD overall height | 0.6 in (14 mm) | CAD overall depth | 2.3 in (58 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.007 lb(US) (0.003 kg) |
| Operating position | Any position | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 | Signalling type | Steady |
| Supply voltage limits | 40…132 V AC | Surge withstand | 1 kV in contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C 852<br />JIS C 4520<br />UL 508 | Product Certifications | UL<br />GOST<br />CSA<br />CCC |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
