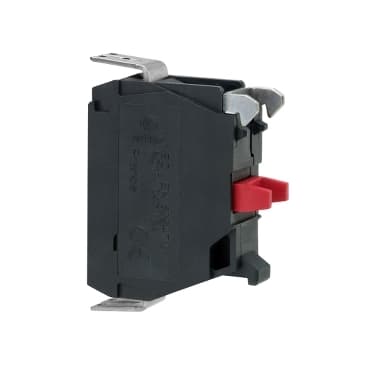

ZBE1026P3
Product ID:27645
Updated: 2026/4/7
Key Features
- 1Install quickly with convenient quick-connect terminals. 2、Ensure seamless integration with Harmony XB4/XB5 series. 3、Utilize the versatile 1-pole configuration for various circuits. 4、Rely on high-quality construction for long-term reliability. 5、Meet environmental standards with SVHC compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Contact block |
| Device short name | ZBE | Sale per indivisible quantity | 5 |
| IP degree of protection | IP5X | Contact operation | Slow-break |
| Contact block type | Single | Contacts usage | Low power switching contacts |
| Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm | Net Weight | 0.026 lb(US) (0.012 kg) |
| Contacts type and composition | 1 NC | Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2 N NC changing electrical state |
| Mechanical durability | 10000000 cycles | Contacts material | Gold flashed (Ag/Ni/Au) contacts |
| Mounting of block | Front mounting | Electrical composition code | C9 3)<br />M5 2)<br />M9 2) |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />IEC 60947-5-4<br />JIS C8201-1 |
| Product Certifications | BV<br />UL<br />CSA<br />DNV<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
