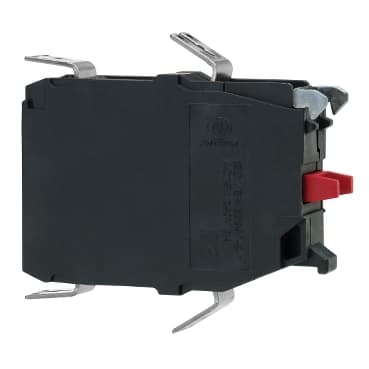

ZBE2053
Product ID:27786
Updated: 2026/4/6
Key Features
- 1Achieve 10 million operation cycles in demanding environments. 2、Ensure reliability with a robust IP20 enclosure and silver alloy contacts. 3、Integrate seamlessly with Harmony XB4 and XB5 control units. 4、Simplify installation using screw clamp terminals and front mounting. 5、Meet environmental standards with lead-free, RoHS compliant design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
| Device short name | ZBE | Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
| Contact block type | Double | Contacts usage | Standard contacts |
| Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm | Net Weight | 0.04 lb(US) (0.02 kg) |
| Contacts type and composition | 1 NO + 1 NC | Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 4.6 N NC + NO changing electrical state |
| Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
| [Ui] rated insulation voltage | 250 V 3)EN 60947-1 | Mounting of block | Front mounting |
| Electrical composition code | C2 3)<br />C4 2)<br />C6 2)<br />C8 1)<br />C10 2)<br />C13 3)<br />M2 2)<br />M4 2)<br />M8 2) | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 | Product Certifications | GL<br />CSA<br />BV<br />UL<br />LROS (Lloyds register of shipping)<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
