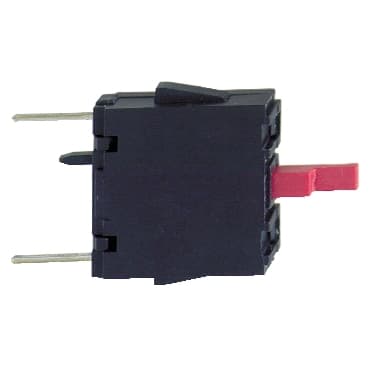

ZBE7026
Product ID:27804
Updated: 2026/7/22
Key Features
- 1Withstand frequent use with a failure rate of less than 10^-8 at 17V and 5mA.
- 2Resist mechanical shock and vibration for long-lasting performance.
- 3Suit general-purpose or specific applications like low current or high-power switching.
- 4Install simply with screw clamp terminals for convenient electrical setups.
- 5Ensure compatibility with systems needing high insulation and impulse withstand voltage.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
| Device short name | ZBE | Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
| Contact block type | Single | Contacts usage | Low power switching contacts |
| Connections - terminals | Pins for printed circuit board | Net Weight | 0.026 lb(US) (0.012 kg) |
| Contacts type and composition | 1 NC | Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2 N NC changing electrical state |
| Mechanical durability | 500000 cycles | Contacts material | Gold flashed (Ag/Ni/Au) contacts |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Standards | IEC 60947-5-4<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | UL<br />BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />GL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
