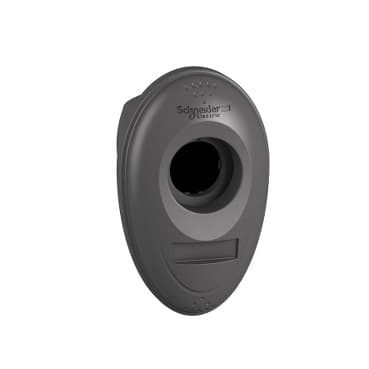

ZBRM01
Product ID:27766
Updated: 2026/7/22
Key Features
- 1Comply with EN/IEC 60947-5-1 and UL 508 standards.
- 2Ensure durability with robust polycarbonate construction.
- 3Match modern panels using a dark gray RAL 7016 finish.
- 4Integrate seamlessly with Harmony XB5R 22mm control units.
- 5Operate reliably in ambient air from -13 to 131°F.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5R | Product or Component Type | Empty handy box |
| Device short name | ZBRM | Mounting diameter | 0.9 in (22 mm) |
| Product destination | For XB5R Ø 22 mm control units | Control station application | One function |
| Colour of base of enclosure | Dark grey RAL 7016) | Colour of cover | Dark grey RAL 7016) |
| Material | Polycarbonate | Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| IP degree of protection | IP65 IEC 60529 | IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | ETSI EN 301 489-1<br />ETSI EN 300 440-1<br />ETSI EN 300 440-2<br />ETSI EN 301 489-3<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1 | Product Certifications | C-tick<br />FCC<br />ANATEL<br />RSS<br />BT 2006/95/EC<br />GOST<br />CE<br />SRRC |
| Directives | 2004/108/EC - electromagnetic compatibility<br />1999/5/EC - R&TTE directive |
Specifications may be subject to change without notice
