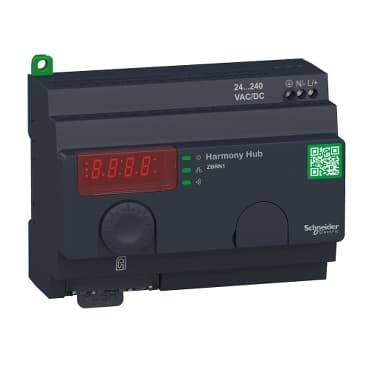

ZBRN1
Product ID:27775
Updated: 2026/4/6
Key Features
- 1Integrate wireless Zigbee with Modbus/TCP Ethernet seamlessly. 2、Operate across a wide 24-240V AC/DC voltage range. 3、Connect up to 60 devices for enhanced network efficiency. 4、Install the compact 122x90x60 mm unit in tight spaces. 5、Ensure compliance with CE, RoHS, and EMC safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony | Product or Component Type | Harmony Hub Wireless/Ethernet gateway |
| Device short name | ZBRN1 | Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Function of module | Zigbee green power gateway | Communication port protocol | Modbus/TCP client application, with ZBRCETH module |
| Antenna type | Integrated | Transmission frequency | 2405…2480 MHz |
| Maximum radio communication distance | 328.08 ft (100 m) in free field<br />820.2 ft (250 m) if a relay antenna is located between the transmitter and Harmony Hub<br />196.9 ft (60 m) if an external antenna is connected to Harmony Hub<br />82.02 ft (25 m) with Harmony Hub installed in a metal housing or in a closed metal enclosure | Radio response time | < 30 ms |
| Radio channels utilisation | <= 60 devices | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Immunity to microbreaks | 10 ms | Maximum power consumption in W | 4 W AC/DC |
| Control circuit frequency | 50...60 Hz +/- 10 % | Short-circuit protection | 16 A GB2 circuit breaker |
| Operating position | Any position | Mounting support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715<br />Mounting plate |
| Electrical connection | 1 conductor cable 0.0003…0.006 in² (0.2…4 mm²) - AWG 24...AWG 12 - solid - without cable end IEC 60947-1<br />2 conductors cable 0.0003…0.002 in² (0.2…1.5 mm²) - AWG 24...AWG 16 - solid - without cable end IEC 60947-1<br />1 conductor cable 0.0003…0.001 in² (0.2…0.75 mm²) - AWG 24...AWG 14 - flexible - with cable end IEC 60947-1<br />2 conductors cable 0.0003…0.004 in² (0.2…2.5 mm²) - AWG 24...AWG 18 - flexible - with cable end IEC 60947-1 | Tightening torque | 3.10…3.5 lbf.in (0.35…0.4 N.m) EN/IEC 60947-1<br />3.09…3.54 lbf.in (0.35…0.40 N.m) EN/IEC 60947-1 |
| Housing material | Self-extinguishing plastic | Status LED | 1 LED Green power ON<br />1 LED Yellow communication network<br />5 LEDs Red function mode<br />1 LED green and yellow reception signal |
| Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz EN/IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 4 kV |
| Surge withstand | 1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5 | Width | 4.8 in (122 mm) |
| Height | 3.5 in (90 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 0.57 lb(US) (0.26 kg) | Antenna gain | 0 dBi |
| Integrated connection type | Ethernet Modbus TCP/IP RJ45 Modbus TCP network, 10/100 Mbit/s, 2 twisted pairs | Data storage equipment | SD card |
| Topology | Devices linked by daisy-chaining or tap junctions | Port Ethernet | 10BASE-T/100BASE-T |
| Maximum cable distance between devices | 3280.8 ft (1000 m) | Radio agreement | ANATEL, type III ETSI EN 301 489-3<br />FCC, category 2 ETSI EN 300 440-1<br />ICASA<br />RSS, category 1 ETSI EN 300 440-1<br />SRRC |
| Product Certifications | C-tick<br />CCC<br />CSA<br />GOST<br />UL<br />CE | Directives | 2004/108/EC - electromagnetic compatibility<br />1999/5/EC - R&TTE directive<br />2006/95/EC - low voltage directive |
| Standards | ETSI EN 300 328<br />EN/IEC 61131-2<br />CSA C22.2 No 14<br />ETSI EN 300 440-2<br />UL 508<br />EN/IEC 60950-1<br />EN 62311 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Relative humidity | 90 % -13…131 °F (-25…55 °C), without condensation ETSI EN 300 440-1 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | +/- 3.5 mm 5…14 Hz) IEC 60068-2-6<br />1 gn 5…150 Hz) on panel mounting IEC 60068-2-6<br />2 gn 8…150 Hz) on DIN rail IEC 60068-2-6 |
| Shock resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 | IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) |
| Pollution degree | 2 IEC 60664-1 | Electromagnetic compatibility | 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5<br />1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5<br />Immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11 |
| Dielectric strength | 3000 V between input and output AC<br />4250 V between input and output DC<br />1500 V between input and ground AC<br />2150 V between input and ground DC |
