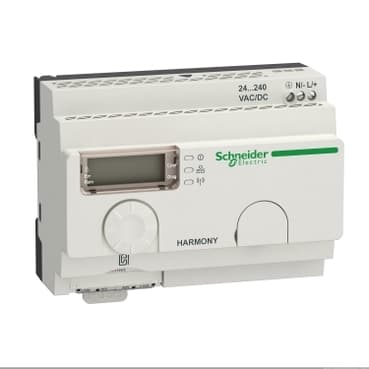

ZBRN12
Product ID:27776
Updated: 2026/4/6
Key Features
- 1Achieve fast radio response times under 30 ms for swift connectivity. 2、Utilize versatile 24-240 V AC/DC power supply for broad compatibility. 3、Leverage advanced Zigbee connectivity for efficient sensor network management. 4、Monitor status clearly with 4 displays and 5 LEDs for reliable operation. 5、Support sustainability with packaging made from recycled cardboard materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony | Product or Component Type | Wireless access point |
| Device short name | ZBRN2 | Product Specific Application | Interface to PLC |
| Function of module | Monostable | Radio response time | < 30 ms after transmitter clicks |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % | Immunity to microbreaks | 10 ms |
| Maximum power consumption in W | 4 W AC/DC | Breaking capacity | 750 VA |
| Control circuit frequency | 50...60 Hz +/- 10 % | Short-circuit protection | 16 A GB2 circuit breaker |
| Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz EN/IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 4 kV |
| Surge withstand | 1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5 | Width | 4.8 in (122 mm) |
| Height | 3.5 in (90 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 0.60 lb(US) (0.27 kg) | Product Certifications | CSA<br />C-tick<br />UL<br />GOST<br />CE<br />CCC |
| Directives | 1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive | Standards | CSA C22.2 No 14<br />UL 508<br />ETSI EN 300 328<br />EN/IEC 60950-1<br />ETSI EN 300 440-2<br />EN 62311<br />EN/IEC 61131-2 |
| marking | CE | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | +/- 3.5 mm 5…14 Hz) IEC 60068-2-6<br />1 gn 5…150 Hz) on panel mounting IEC 60068-2-6<br />2 gn 8…150 Hz) on DIN rail IEC 60068-2-6 | IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) |
Specifications may be subject to change without notice
