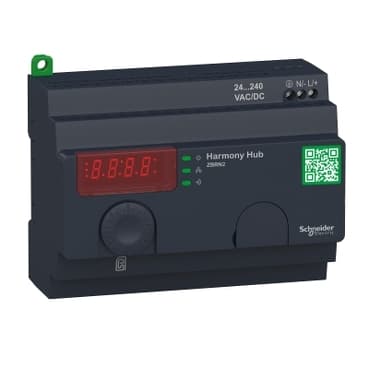

ZBRN32
Product ID:27818
Updated: 2026/7/22
Key Features
- 1Assemble and disassemble quickly for efficient installation.
- 2Withstand harsh environments with robust construction.
- 3Support various connections like screw clamp and spring terminal.
- 4Ensure reliable operation with monostable function and microbreak immunity.
- 5Meet global standards including GOST, UL, CE, CSA, and CCC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony | Product or Component Type | Wireless access point |
| Device short name | ZBRN2 | Product Specific Application | Interface to PLC |
| Function of module | Monostable | Radio response time | < 30 ms after transmitter clicks |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % | Immunity to microbreaks | 10 ms |
| Maximum power consumption in W | 4 W AC/DC | Breaking capacity | 750 VA |
| Control circuit frequency | 50...60 Hz +/- 10 % | Short-circuit protection | 16 A GB2 circuit breaker |
| Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 4 kV |
| Surge withstand | 1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5 | Width | 4.8 in (122 mm) |
| Height | 3.5 in (90 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 0.60 lb(US) (0.27 kg) | Product Certifications | GOST<br />C-tick<br />UL<br />CE<br />CSA<br />CCC |
| Directives | 2006/95/EC - low voltage directive<br />1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility | Standards | IEC 62311<br />IEC 60950-1<br />ETSI EN 300 328<br />CSA C22.2 No 14<br />ETSI EN 300 440-2<br />UL 508<br />IEC 61131-2 |
| marking | CE | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | +/- 3.5 mm 5…14 Hz) IEC 60068-2-6<br />1 gn 5…150 Hz) on panel mounting IEC 60068-2-6<br />2 gn 8…150 Hz) on DIN rail IEC 60068-2-6 | IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) |
Specifications may be subject to change without notice
