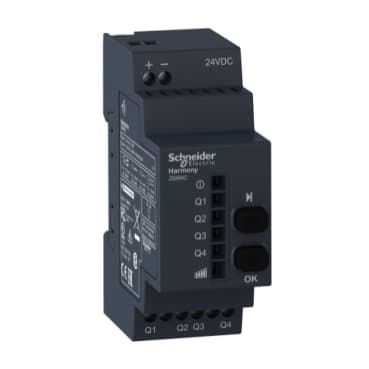

ZBRRC
Product ID:27821
Updated: 2026/4/6
Key Features
- 1Withstand harsh industrial environments with a robust plastic construction. 2、Simplify installation via quick assembly and disassembly procedures. 3、Connect flexibly using screw clamp, connector, Faston, spring terminal, or PCB. 4、Operate efficiently with 24V DC and 200 mA output for energy savings. 5、Meet global standards including C-TICK, CCC, CSA, and RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony | Product or Component Type | Programmable receiver |
| Device short name | ZBRRC | Product Specific Application | Interface to PLC |
| Function of module | Monostable | Reset time | 2 ms time delay |
| Transmission frequency | 2405 MHz | emission class | 5M00G7W |
| Antenna type | Omnidirectional | Output Type | Transistor PNP |
| Output contacts | 4 PNP | Time delay range | 0.5 s - 15...15 %) |
| Maximum switching current | 0.2 mA DC | Minimum switching current | 10 mA 5 V DC |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % | Maximum voltage drop | <2 V DC 2 A |
| Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 | Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />131.2 ft (40 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Response Time | < 30 ms after transmitter clicks | Utilisation category | DC-13 IEC 60947-5-1 |
| Maximum power consumption in VA | 20 VA DC | Maximum power consumption in W | 20 W DC |
| Breaking capacity | 4.8 W per output) | Short-circuit protection | 0.4 A fuse fast blow |
| Operating position | Any position without derating | Electrical connection | 1 conductor cable 0.0002…0.004 in² (0.14…2.5 mm²) - AWG 26...AWG 14 - solid - without cable end IEC 60947-1<br />2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - solid - without cable end IEC 60947-1<br />1 conductor cable 0.0002…0.006 in² (0.14…4 mm²) - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1<br />2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1 |
| Tightening torque | 4.4…8.9 lbf.in (0.5…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
| Status LED | 1 LED Green power ON<br />1 LED green and yellow reception signal<br />4 LEDs Green relay ON | Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715<br />Mounting plate |
| Rated short-duration power frequency withstand voltage | 1 kV 50 Hz IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 0.8 kV |
| Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 | Max power consumption in W | 1 mW |
| Number of Channels | 1 | Modulation technique | O-QPSK |
| Bandwidth | 5 MHz | Antenna gain | 0 dBi |
| Width | 1.4 in (36 mm) | Height | 4.3 in (108 mm) |
| Depth | 3.0 in (75 mm) | Net Weight | 0.29 lb(US) (0.13 kg) |
| Standards | IEC 60947-5-1 | Radio agreement | RSS<br />SRRC<br />ANATEL<br />ARIB T66<br />FCC<br />ICASA |
| Product Certifications | CCC<br />CSA<br />GOST<br />C-tick<br />UL | marking | CE |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Relative humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 |
| Vibration resistance | +/- 7.5 mm 5…14 Hz)IEC 60068-2-6<br />2 gn 8…150 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 |
| IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) | Pollution degree | 2 IEC 60664-1 |
| Overvoltage category | III IEC 60664-1 | Insulation resistance | > 500 MOhm 500 V DC NF C 20-030 |
| [Ui] rated insulation voltage | 60 V IEC 60664-1 | Electromagnetic compatibility | Immunity for industrial environments conforming to IEC 61000-6-2<br />Conducted and radiated emissions class B conforming to CISPR 22<br />Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4<br />Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6<br />Radiated emission conforming to ETSI EN 300 440-1<br />Conducted emission conforming to EN 300-489-1<br />Conducted emission conforming to ETSI EN 300 489-3<br />Radiated emission conforming to ETSI EN 300 440-2<br />Electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4<br />1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5<br />1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5<br />Immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11 |
Specifications may be subject to change without notice
