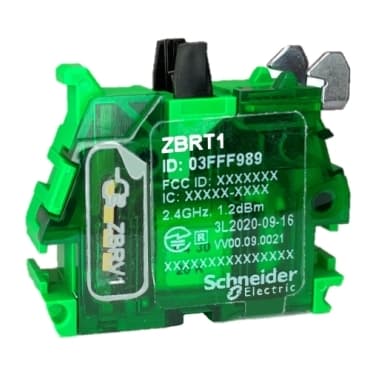

ZBRT1
Product ID:27824
Updated: 2026/7/22
Key Features
- 1Operate wirelessly without batteries for continuous, maintenance-free functionality.
- 2Utilize Zigbee Green Power technology for energy-efficient and reliable communication.
- 3Install the compact 22mm diameter device in space-constrained industrial panels.
- 4Transmit signals up to 100m free field or 300m with a relay for extended range.
- 5Ensure compliance with UL 508, CSA, and other key international safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Wireless and batteryless transmitter |
| Device short name | XB5R | Bezel material | Plastic |
| Mounting diameter | 0.9 in (22 mm) | Transmission frequency | 2405 MHz |
| emission class | 5M00G7W | Antenna type | Omnidirectional |
| Max power consumption in W | 1 mW | Number of Channels | 16 |
| Modulation technique | O-QPSK | Bandwidth | 5 MHz |
| Antenna gain | 0 dBi | Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.6 in (41.5 mm) | CAD overall width | 1.2 in (30 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.055 lb(US) (0.025 kg) |
| Operating travel | 0.2 in (4.3 mm) total travel) | Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | Free fall resistance 1000 mm IEC 60068-2-32 | Standards | CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508 |
| Radio agreement | ANATEL<br />ARIB T66<br />FCC<br />ICASA<br />RSS | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna | Acquisition time | 2 ms |
| Response time | < 2 ms | Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
| Electrical composition code | PW1 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Relative humidity | 95 % -40…158 °F (-40…70 °C) without condensation |
| IP degree of protection | IP30 IEC 60529 back face) | IK degree of protection | IK03 conforming to IEC 50102 |
| Mechanical durability | 1000000 cycles | Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Product Certifications | CSA<br />GOST<br />CCC<br />C-tick<br />UL<br />BT 2006/95/EC | Directives | 1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility |
