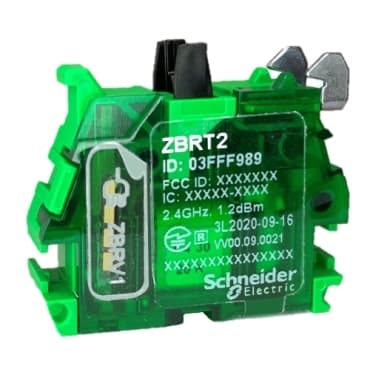

ZBRT2
Product ID:27825
Updated: 2026/4/6
Key Features
- 1Send dual-action signals at button press and release. 2、Operate without batteries for continuous uptime. 3、Utilize Zigbee Green Power protocol for efficient 2.4 GHz communication. 4、Withstand harsh conditions with high durability and free fall resistance. 5、Integrate seamlessly with ZBRRp, ZBRA1, and ZBRNp versions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Wireless and batteryless transmitter |
| Device short name | XB5R | Bezel material | Plastic |
| Mounting diameter | 0.9 in (22 mm) | Transmission frequency | 2405 MHz |
| emission class | 5M00G7W | Antenna type | Omnidirectional |
| Max power consumption in W | 1 mW | Number of Channels | 16 |
| Modulation technique | O-QPSK | Bandwidth | 5 MHz |
| Antenna gain | 0 dBi | Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.6 in (41.5 mm) | CAD overall width | 1.2 in (30 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.055 lb(US) (0.025 kg) |
| Operating travel | 0.2 in (4.3 mm) total travel) | Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | Free fall resistance 1000 mm IEC 60068-2-32 | Standards | CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508 |
| Radio agreement | ANATEL<br />ARIB T66<br />FCC<br />ICASA<br />RSS | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna | Acquisition time | 2 ms |
| Response time | < 2 ms | Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
| Electrical composition code | PW1 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Relative humidity | 95 % -40…158 °F (-40…70 °C) without condensation |
| IP degree of protection | IP30 IEC 60529 back face) | IK degree of protection | IK03 conforming to IEC 50102 |
| Mechanical durability | 400000 cycles | Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Product Certifications | CSA<br />CCC<br />UL<br />GOST<br />C-tick<br />BT 2006/95/EC | Directives | 2004/108/EC - electromagnetic compatibility<br />1999/5/EC - R&TTE directive |
Specifications may be subject to change without notice
