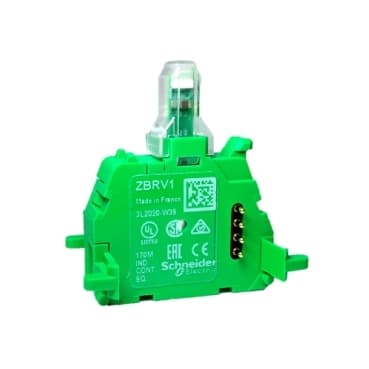

ZBRV1
Product ID:27826
Updated: 2026/4/6
Key Features
- 1Reduce installation and maintenance costs with compatibility for all XB5 & XB4 actuators. 2、Operate reliably in demanding environments rated up to IP 69, from -40 to 70°C. 3、Utilize wireless and batteryless pushbuttons featuring a transmitter with a fixing collar. 4、Check system functioning easily with the visual feedback option and illuminated actuators. 5、Ensure the highest cybersecurity level with the ability to change frequency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5R | Product or Component Type | Visual feedback |
| Device short name | XB5R | Light source colour | White |
| Product compatibility | ZBRRA - receiver V2.2 and above)<br />ZBRRC - receiver V2.2 and above)<br />ZBRRD - receiver V2.2 and above)<br />ZBRA1 - antenna V3.3 and above)<br />ZBRN1 - wireless access point V3.32 and above)<br />ZBRN2 - wireless access point V3.32 and above) | Sale per indivisible quantity | 1 |
| [Us] rated supply voltage | 3 V with battery | Signalling type | Blinking |
| Light source | Protected LED | Bulb base | Integral LED |
| Light block supply | Direct | Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.5 in (37.4 mm) | CAD overall width | 1.0 in (24.2 mm) |
| CAD overall depth | 1.6 in (39.6 mm) | Net Weight | 0.020 lb(US) (0.009 kg) |
| Standards | IEC 60947-1<br />IEC 60947-5-1 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | Relative humidity | 95 % 32…131 °F (0…55 °C) without condensation |
| Mechanical durability | 50000 cycles | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3 |
| Product Certifications | CSA<br />UL Listed<br />EAC |
Specifications may be subject to change without notice
