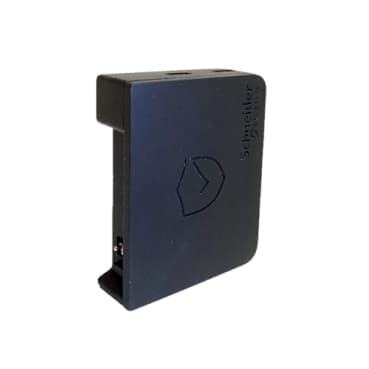

ZBRZ1
Product ID:27827
Updated: 2026/7/22
Key Features
- 1Ensure top cybersecurity to protect industrial networks.
- 2Withstand harsh conditions with IP69 protection from -40 to 70°C.
- 3Switch frequencies easily for operational flexibility.
- 4Utilize wireless batteryless pushbuttons to cut maintenance.
- 5Integrate seamlessly with all XB5 & XB4 actuators.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5R | Product or Component Type | Commissioning module |
| Device short name | XB5R | Product compatibility | ZBRA1 - antenna V3.3 and above)<br />ZBRN1 - wireless access point V3.32 and above)<br />ZBRN2 - wireless access point V3.32 and above) |
| Sale per indivisible quantity | 1 | [Us] rated supply voltage | 3 V with battery |
| Embedding Depth | 1.7 in (42 mm) | CAD overall height | 1.4 in (34.5 mm) |
| CAD overall width | 1.7 in (43.6 mm) | CAD overall depth | 0.5 in (12 mm) |
| Net Weight | 0.004 lb(US) (0.002 kg) | Standards | IEC 60947-1<br />IEC 60947-5-1 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 41…95 °F (5…35 °C) |
| Relative humidity | 95 % 32…95 °F (0…35 °C) without condensation | Mechanical durability | 1000 cycles |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3 | Product Certifications | CSA<br />UL Listed<br />EAC |
Specifications may be subject to change without notice
