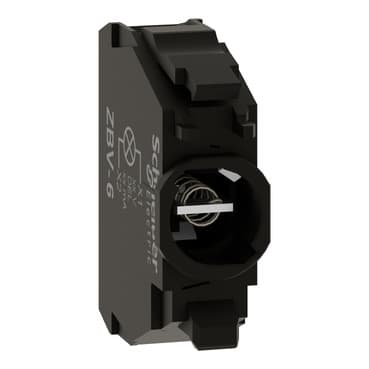

ZBV6
Product ID:27910
Updated: 2026/4/6
Key Features
- 1Ensure compatibility with BA9s bulbs and Harmony XB4/XB5 series. 2、Achieve high vibration resistance via screw clamp connection terminals. 3、Protect operators from unexpected contact with live circuits. 4、Operate reliably from -40°C to 70°C in various environments. 5、Enable fast replacement via clip-together assembly.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Light block |
| Device short name | ZBV | Sale per indivisible quantity | 5 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Signalling type | Steady |
| Light source | Bulb not included | Bulb base | BA 9s |
| Light block supply | Direct | [Us] rated supply voltage | 250 V |
| Net Weight | 0.035 lb(US) (0.016 kg) | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 | Mounting of block | Front mounting |
| Electrical composition code | M7<br />M8<br />MF2<br />P3<br />PF2 | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
| Standards | IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-5<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />UL Listed |
| Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
