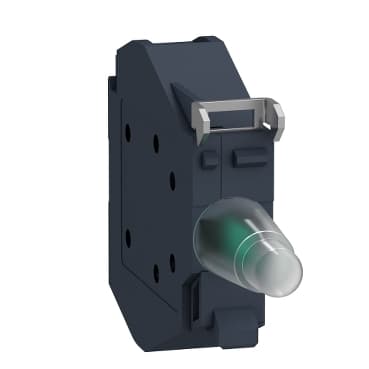

ZBVBM3GEX
Product ID:27886
Updated: 2026/7/22
Key Features
- 1Operate reliably in Class I Division 2 hazardous locations.
- 2Deliver up to 100,000 hours of service at ambient temperature.
- 3Ensure durability with IP65 protection against dust and water ingress.
- 4Reduce energy consumption and environmental impact efficiently.
- 5Simplify installation using screw clamp terminals for various cables.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Light block |
| Device short name | ZBV | Sale per indivisible quantity | 1 |
| Connections - terminals | Screw clamp terminals, 2 x 1.5 mm² without cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² with cable end IEC 60947-1 | Signalling type | Steady |
| Light source | LED | Bulb base | Integral LED |
| Light block supply | Direct | Light source colour | Green |
| [Us] rated supply voltage | 24...254 V AC/DC | CAD overall width | 1.5 in (38 mm) |
| CAD overall height | 0.4 in (10 mm) | CAD overall depth | 2.3 in (58.8 mm) |
| Net Weight | 0.04 lb(US) (0.02 kg) | marking | Ex eb mb IIC Gb |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | current consumption | 2...10 mA |
| Service life | 100000 h at ambiant temperature | Mounting of block | Front mounted |
| Protective treatment | TH | Ambient Air Temperature for Storage | -58…158 °F (-50…70 °C) |
| Ambient Air Temperature for Operation | -58…203 °F (-50…95 °C) | IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60079-31<br />ANSI/ISA 12.12.01<br />UL 60079-31<br />EN/IEC 60079-18<br />IEC 60079-0<br />IEC 60079-7<br />UL 60079-18<br />UL 60079-0<br />CSA C22.2 No 213 | Product Certifications | cULus |
| Environmental characteristic | Hazardous location class I division 2 |
Specifications may be subject to change without notice
