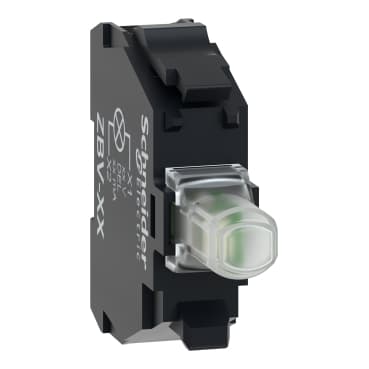

ZBVJ1
Product ID:27953
Updated: 2026/4/6
Key Features
- 1Integrate a long-life LED lamp for steady signal illumination. 2、Utilize screw-clamp terminals for easy, vibration-resistant connections. 3、Ensure compatibility with Harmony XB4 and XB5 metal pushbuttons. 4、Provide clear visual distinction via universal LED illumination. 5、Protect operators with an IP20 safety rating against contact.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Light block |
| Device short name | ZBV | Sale per indivisible quantity | 5 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Signalling type | Steady |
| Light source | Universal LED | Bulb base | Integral LED |
| Light block supply | Direct | Light source colour | White |
| [Us] rated supply voltage | 12 V | Net Weight | 0.037 lb(US) (0.017 kg) |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| Supply voltage limits | 10…15 V DC<br />10.2…13.8 V AC | current consumption | 15 mA |
| Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
| Mounting of block | Front mounting | Electrical composition code | M1<br />M2<br />M3<br />M4<br />M5<br />M6<br />M10<br />MF1<br />P1<br />P2<br />PF1 |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP20 IEC 60529 | Standards | JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-5<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | UL Listed<br />CSA | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
