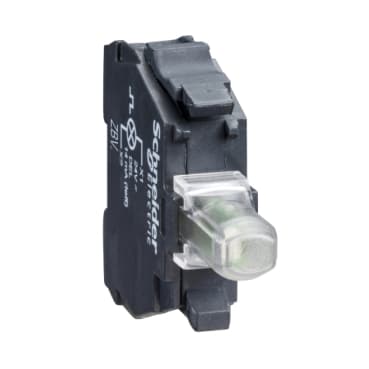

ZBVM6
Product ID:27992
Updated: 2026/4/6
Key Features
- 1Integrate reliable LED technology for efficient lighting. 2、Operate seamlessly with 230-240V AC power compatibility. 3、Install easily using screw clamp terminals. 4、Provide clear blue illumination for enhanced visibility. 5、Use specifically with Harmony XB4 illuminated heads.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Light block |
| Device short name | ZBV | Sale per indivisible quantity | 5 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 | Signalling type | Steady |
| Light source | Protected LED | Bulb base | Integral LED |
| Light block supply | Direct | Light source colour | Blue |
| [Us] rated supply voltage | 230...240 V | Net Weight | 0.037 lb(US) (0.017 kg) |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| Supply voltage limits | 195…264 V AC | current consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
| Mounting of block | Front mounting | Electrical composition code | M1<br />M2<br />M3<br />M4<br />M5<br />M6<br />M10<br />MF1<br />P1<br />P2<br />PF1 |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP20 IEC 60529 | Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1 |
| Product Certifications | CSA<br />UL Listed | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
