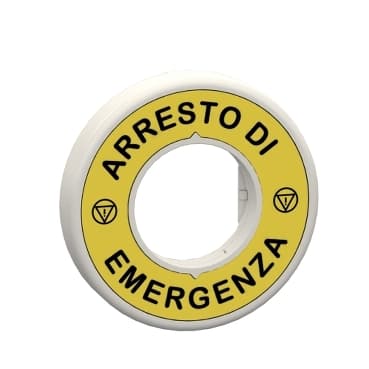

ZBY9W2G630
Product ID:28660
Updated: 2026/4/5
Key Features
- 1Provide clear labeling for emergency stop devices. 2、Supply ready engraved with relevant operational markings. 3、Ensure compatibility with standard 60mm Harmony units. 4、Reduce energy use with low 14 mA consumption. 5、Protect against dust and water with IP66-rated plastic.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony | Product or Component Type | Illuminated marked legend ring |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| cap/operator or lens colour | Red | Operator additional information | With illuminated ring |
| Light source | Protected LED | Bulb base | Integral LED |
| Light source colour | Red | [Us] rated supply voltage | 110...120 V AC 50/60 Hz |
| Device presentation | Intermediate ring | Accessory / separate part destination | Emergency stop mushroom head push-button |
| Material | Plastic | Marking | Black ARRESTO EMERGENZA yellow |
| Label dimensions | Ø 60 mm | User Language | Spanish |
| Height | 2.4 in (60 mm) | Width | 0.4 in (9.3 mm) |
| Net Weight | 0.035 lb(US) (0.016 kg) | Electrical insulation class | Class II IEC 61140 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | [Ui] rated insulation voltage | 120 V 3)EN/IEC 60947-1 |
| Signalling type | Steady | Supply voltage limits | 100…132 V AC |
| current consumption | 14 mA | Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 | compatibility code | XB4<br />XB5 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E |
| IK degree of protection | IK05 conforming to EN 50102 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | UL Listed<br />CSA | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
