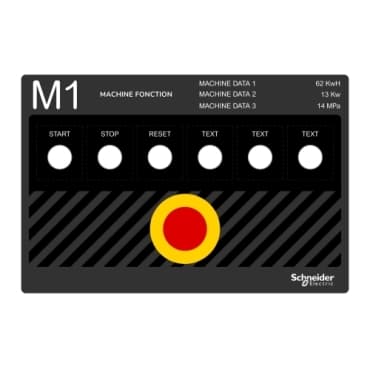

ZBYLEG302001
Product ID:28770
Updated: 2026/7/20
Key Features
- 1Accelerate installation with quick and easy assembly for the ZBYLEG302001.
- 2Ensure reliability with robust construction for harsh environments.
- 3Connect flexibly using screw clamp, connector, Faston, spring terminal, or PCB.
- 4Support sustainability via recycled packaging and extended product life cycles.
- 5Integrate seamlessly with Harmony XB4, XB5, and XB6 control systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Legend panel | accessory / separate part category | Marking accessories |
| Material | Plastic | Device Composition | Marked panel |
| Accessory / separate part destination | Ø 16 mm control and signalling units<br />Ø 22 mm control and signalling units<br />Ø 30 mm control and signalling units<br />For standard head | Range Compatibility | Harmony XB4<br />Harmony XB5<br />Harmony XB6<br />Harmony 9001K |
| Legend holder size | 300 x 200 | Net Weight | 0.066 lb(US) (0.030 kg) |
| Standards | ISO 21702<br />ISO 22196:2011 |
Specifications may be subject to change without notice
