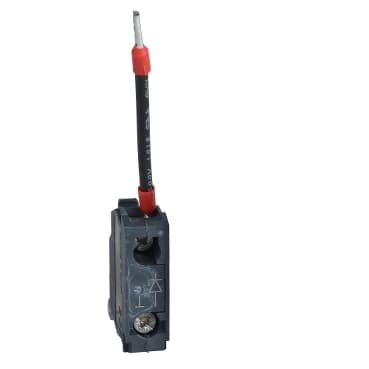

ZBZG156
Product ID:28739
Updated: 2026/7/20
Key Features
- 1Ensure clear visibility with an integral LED light block.
- 2Achieve versatile use with 12-120V AC/DC compatibility.
- 3Enhance safety with Class I & II electrical shock protection.
- 4Guarantee durability via high-quality plastic construction.
- 5Meet global standards like CSA, EN, and IEC for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Block for test light |
| Product Compatibility | Integral LED<br />BA 9s | Light block type | Single block for test light function |
| [Us] rated supply voltage | 12 V AC/DC<br />24 V AC/DC<br />24...120 V AC/DC | Electrical Connection | 1 wire |
| Material | Plastic | Electrical shock protection class | Class I Harmony XB4 IEC 60536<br />Class II Harmony XB5 IEC 60536 |
| Net Weight | 0.02 lb(US) (0.01 kg) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Standards | UL 508<br />IEC 60947-5-5<br />IEC 60947-1<br />IEC 60947-5-4<br />IEC 60947-5-1<br />IEC 60947-5-5<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C 4520 |
| Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms IEC 60068-2-27<br />50 gn 11 ms IEC 60068-2-27 |
Specifications may be subject to change without notice
