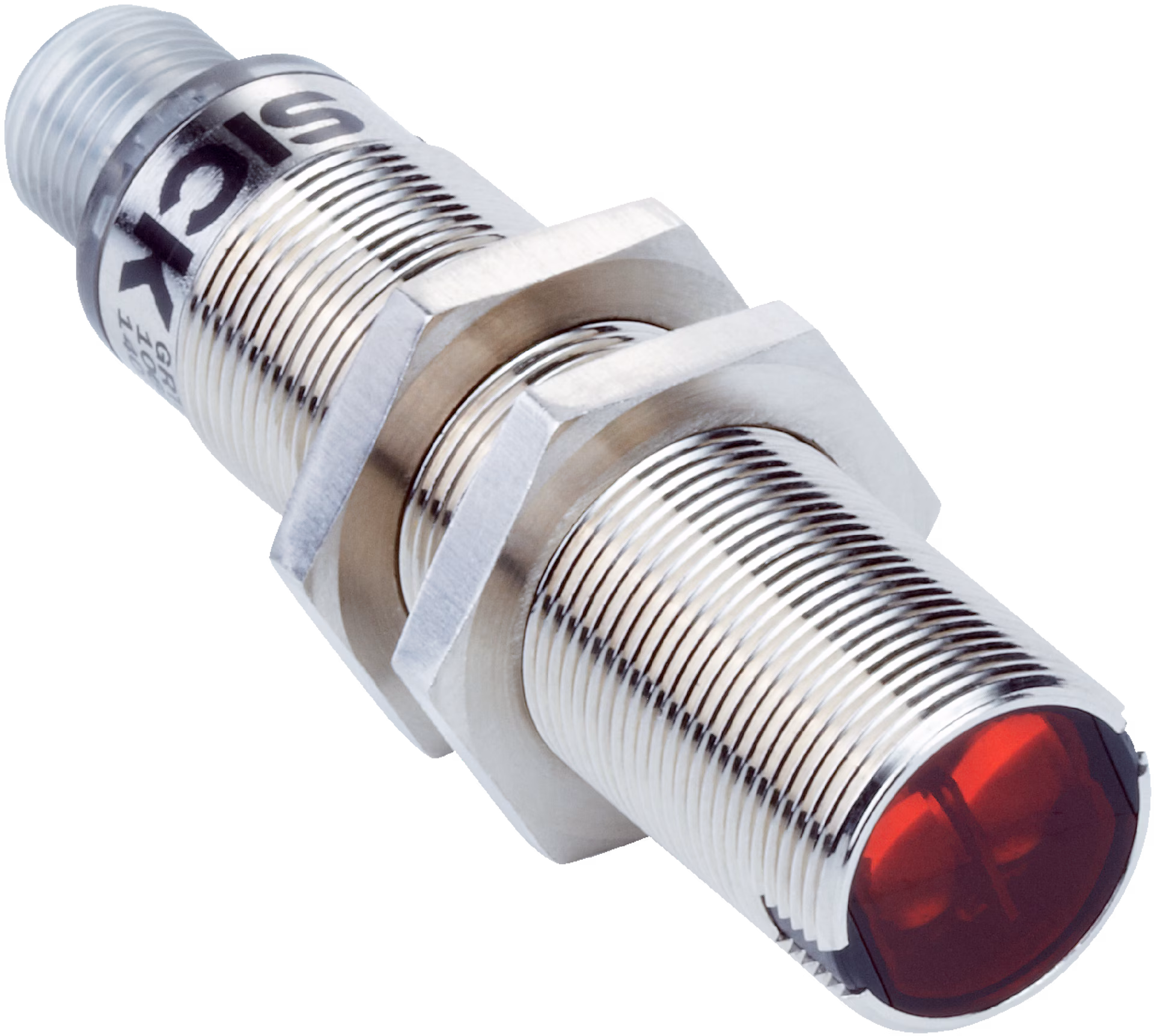

GRTE18-P2412
Product ID:57366
Updated: 2026/7/8
Key Features
- 1Reflective Sensor Technology: Utilizes reflective sensor technology for precise detection.
- 2Adjustable Sensing Distance: Offers adjustable sensing distance from 3 mm to 115 mm.
- 3Robust IP67 Protection: Ensures reliable operation in harsh environments with IP67 protection.
- 4Visible Red Light Emission: Uses visible red light emission for clear object detection.
- 5PNP Output Configuration: Provides PNP output configuration for easy integration into control systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric proximity sensor | Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 73.5 mm | Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 | Optical axis | Axial |
| Sensing range max. | 3 mm ... 115 mm | Sensing range | 5 mm ... 100 mm |
| Type of light | Visible red light | Light source | PinPoint LED |
| Light spot size (distance) | Ø 8 mm (100 mm) | Wave length | 650 nm |
| Adjustment | Potentiometer | Indication_LED green | Operating indicatorStatic on: power on |
| Indication_LED yellow | Status of received light beamStatic on: object presentStatic off: object not present | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Current consumption | 30 mA |
| Switching output | PNP | Output function | Complementary |
| Switching mode | Light/dark switching | Signal voltage PNP HIGH/LOW | V#!#- (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA | Response time | < 1,000 µs |
| Switching frequency | 500 Hz | Connection type | Male connector M12, 4-pin |
| Circuit protection | A6)#!#B7)#!#D8) | Protection class | III |
| Housing material | Metal, Nickel-plated brass and ABS | Optics material | Plastic, PMMA |
| Enclosure rating | IP67 | Items supplied | Fastening nuts (2 x) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 | Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C | UL File No. | E348498 |
Specifications may be subject to change without notice
