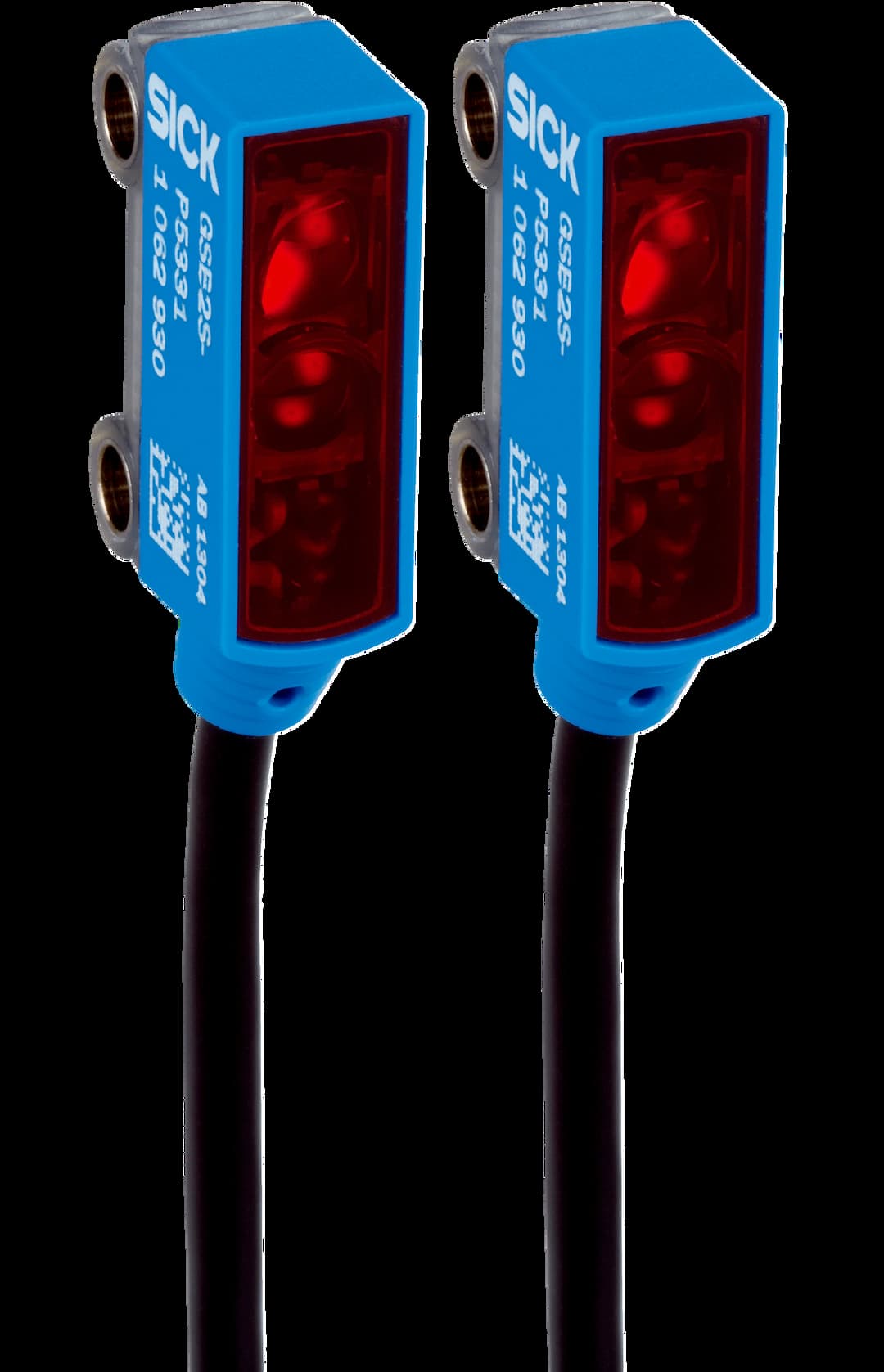

GSE2S-E5311
Product ID:57051
Updated: 2026/7/8
Key Features
- 1Compact Design: The GSE2S-E5311 features a slim housing (7.7 mm x 21.8 mm x 13.5 mm) for easy integration into small machines.
- 2High Sensitivity: With a sensing range of 0 to 2 meters, it offers precise detection in various industrial settings.
- 3Durable Construction: Built with plastic (ABS) and PMMA optics, it ensures robust performance in harsh environments.
- 4Wide Operating Range: Operates between -25°C and +50°C, making it suitable for diverse industrial conditions.
- 5Efficient Power Consumption: Consumes only 20 mA at 10 to 30 V DC, reducing power costs and energy consumption.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm |
| Housing design (light emission) | Rectangular | Sensing range max. | 0 m ... 2 m |
| Sensing range | 0 m ... 1.5 m | Type of light | Visible red light |
| Light source | PinPoint LED | Light spot size (distance) | Ø 23 mm (500 mm) |
| Wave length | 640 nm | Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
| Current consumption | 20 mA | Switching output | NPN |
| Switching mode | Dark switching | Output current Imax. | ≤ 50 mA |
| Response time | < 0.6 ms | Switching frequency | 800 Hz |
| Connection type | Cable with connector M8, 3-pin, 200 mm | Cable material | Plastic, PVC |
| Cable diameter | Ø 3 mm | Circuit protection | A7)#!#C8)#!#D9) |
| Weight | 39.7 g | Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA | Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +50 °C | Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
